Custom Vessels for Easy Refrigerant Separation

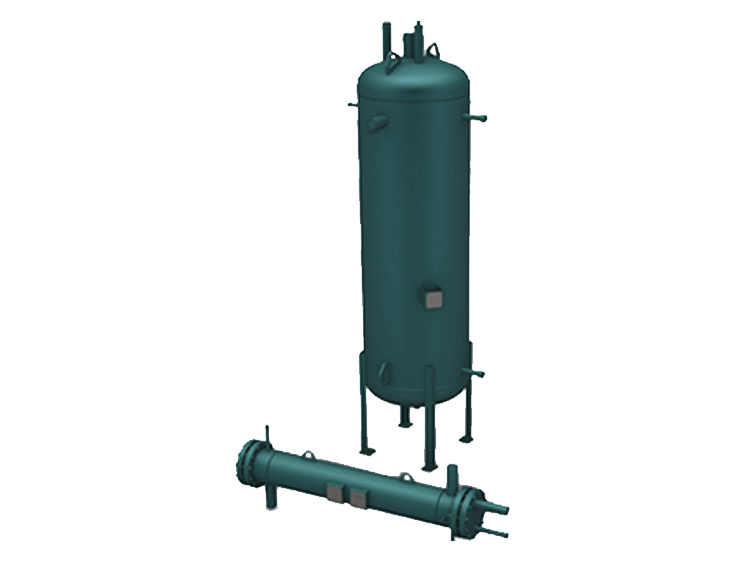

Compact shell and tube heat exchangers are designed for specified refrigerant and conditions.

• Custom rating enabled by FRICK® Coolware software
• Pressure tested to assure the integrity of all welds
• Minimal internal corrosion prior to service

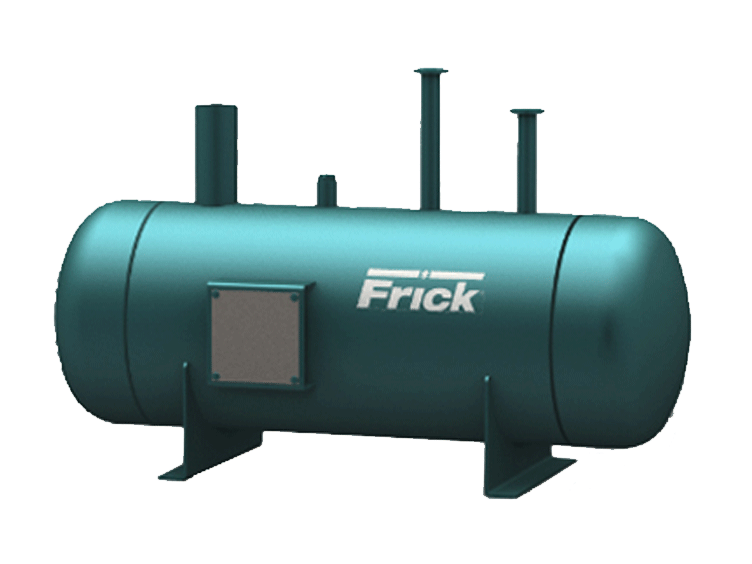

Reliable small diameter pressure vessels that collect oil-rich refrigerant which can accumulate in your refrigeration system.

• ASME, BPV code certified
• Integral steel saddle supports
• Optional immersion heater for low temperature applications

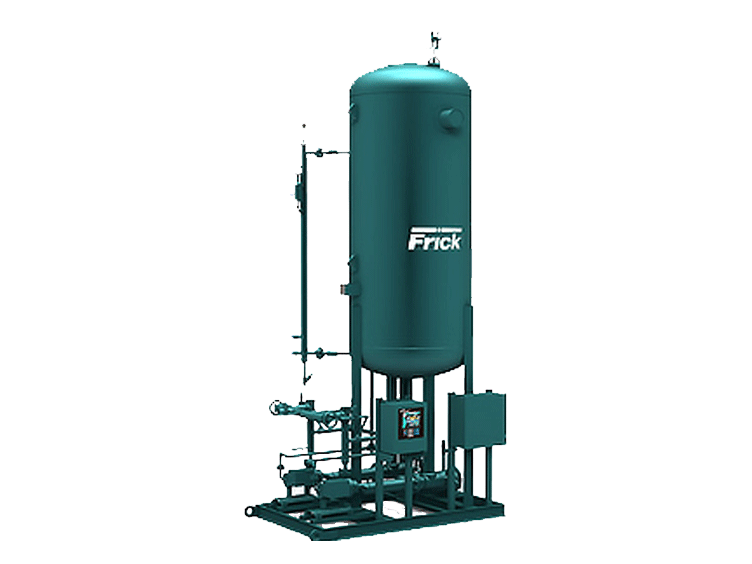

Complete factory-assembled skids with components mounted on a structural steel base.

• Isolation valves and hydrostatic safety relief let you service one pump while the other keeps going
• Oil pot to separate any entrained oil

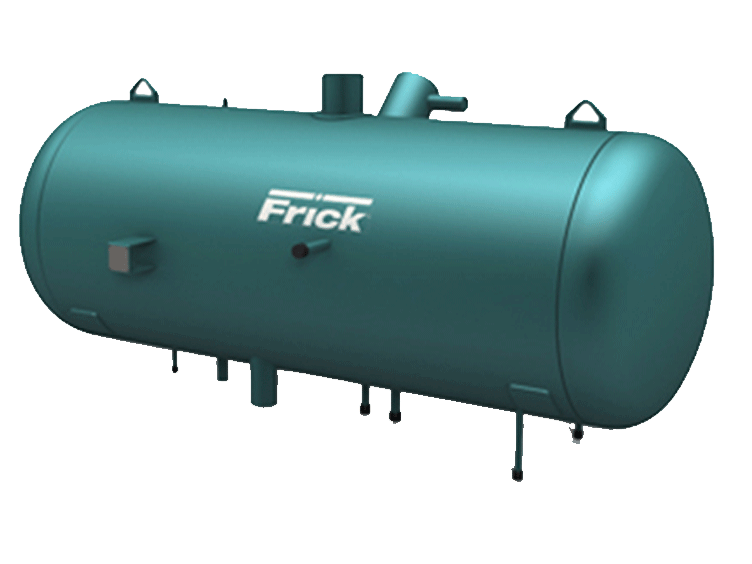

Reliable, cost-effective, and time saving recirculator vessels to separate liquid and vapor refrigerants.

• Nozzle connections are sized according to your system’s conditions
• Abrasively cleaned interior for best adhesion to exterior paint

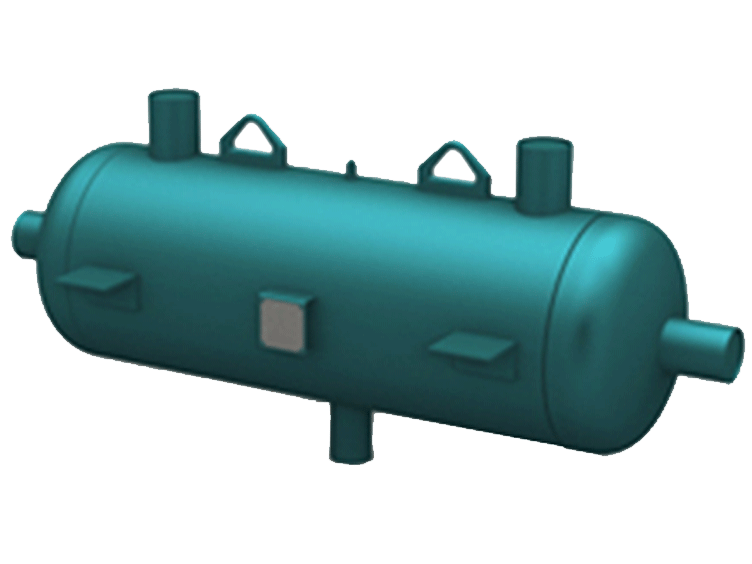

Provides a storage location of high pressure liquid refrigerant to keep your system running smoothly.

• Vertical or horizontal vessel orientation
• General high pressure, dedicated thermosyphon, or combination high pressure/thermosiphon

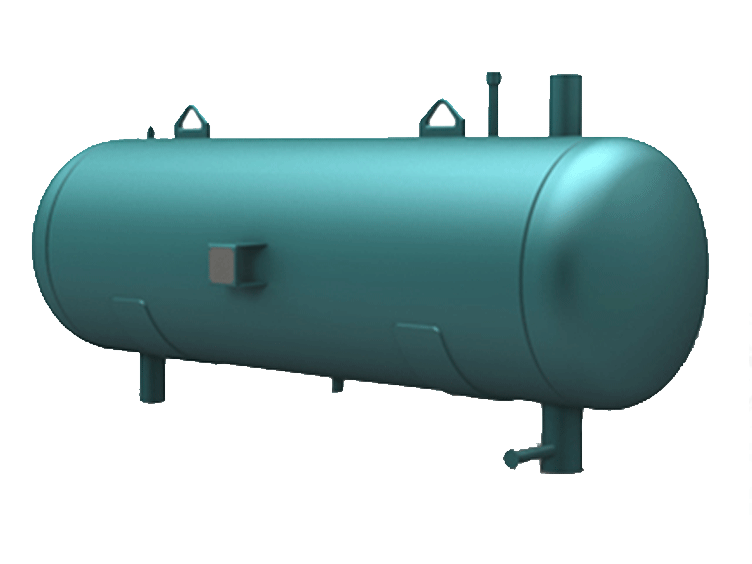

Flooded refrigerant surge drum serves not only as a liquid reservoir, but also as a liquid vapor separator.

• Vapor flow options: single or dual
• Pressure tested to ensure integrity of welds
• Vacuum dehydrated to minimize internal corrosion

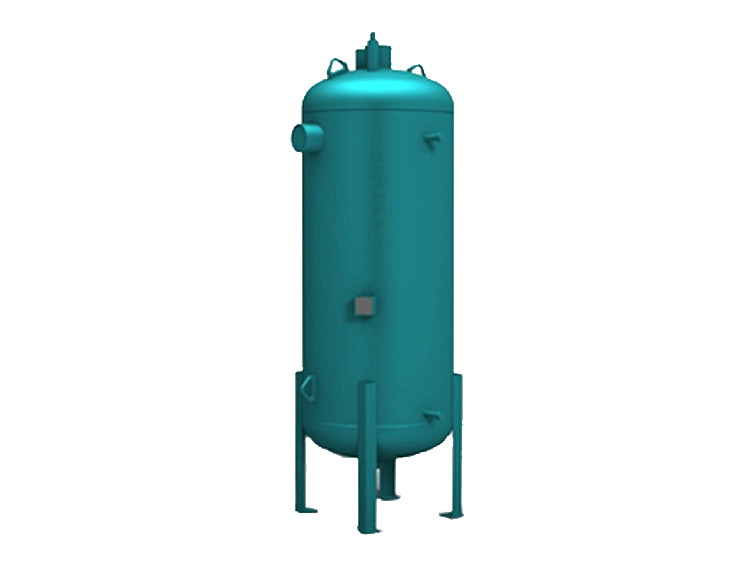

Protects refrigeration vapor compressors by preventing occasional liquid in the suction line from entering the compressors.

• Internal pipe coils to control the liquid accumulation
• 12–96 inch diameter and up to 170"

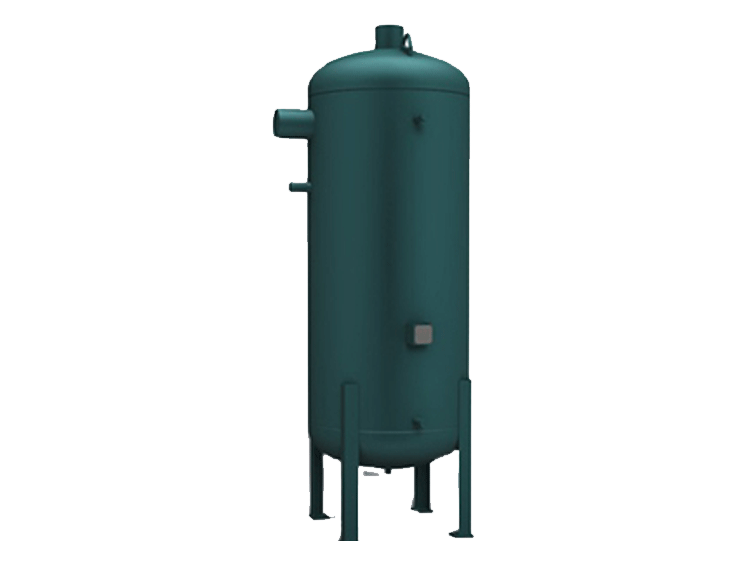

The intercooler discharges gas prior to entering the high stage compressors.

• Serves as suction accumulator for high temperature loads
• Internal pipe coil for subcooling high pressure liquid refrigerant
