EasyIO FW-8V WiFi VAV Controller

Product Overview

The FW series supports BACnet IP client/server, BACnet MSTP client/server, Modbus TCP/RTU M/S as well as Sox, TCOM, P2P and MQTT. The FW series also features HTML5- ready dashboards and can be programmed live via CPT. The FW-08V includes a built-in Pressure Pick-up Sensor for Air Flow Measurement used in VAV applications.

The FW-08V includes 4 UI and 4 AO. For floating control, add the optional FR-02 module. Input point capacity can be expanded with the EasyIO-FD-20i. Licenses and annual maintenance are included in the one-time cost of the controller.

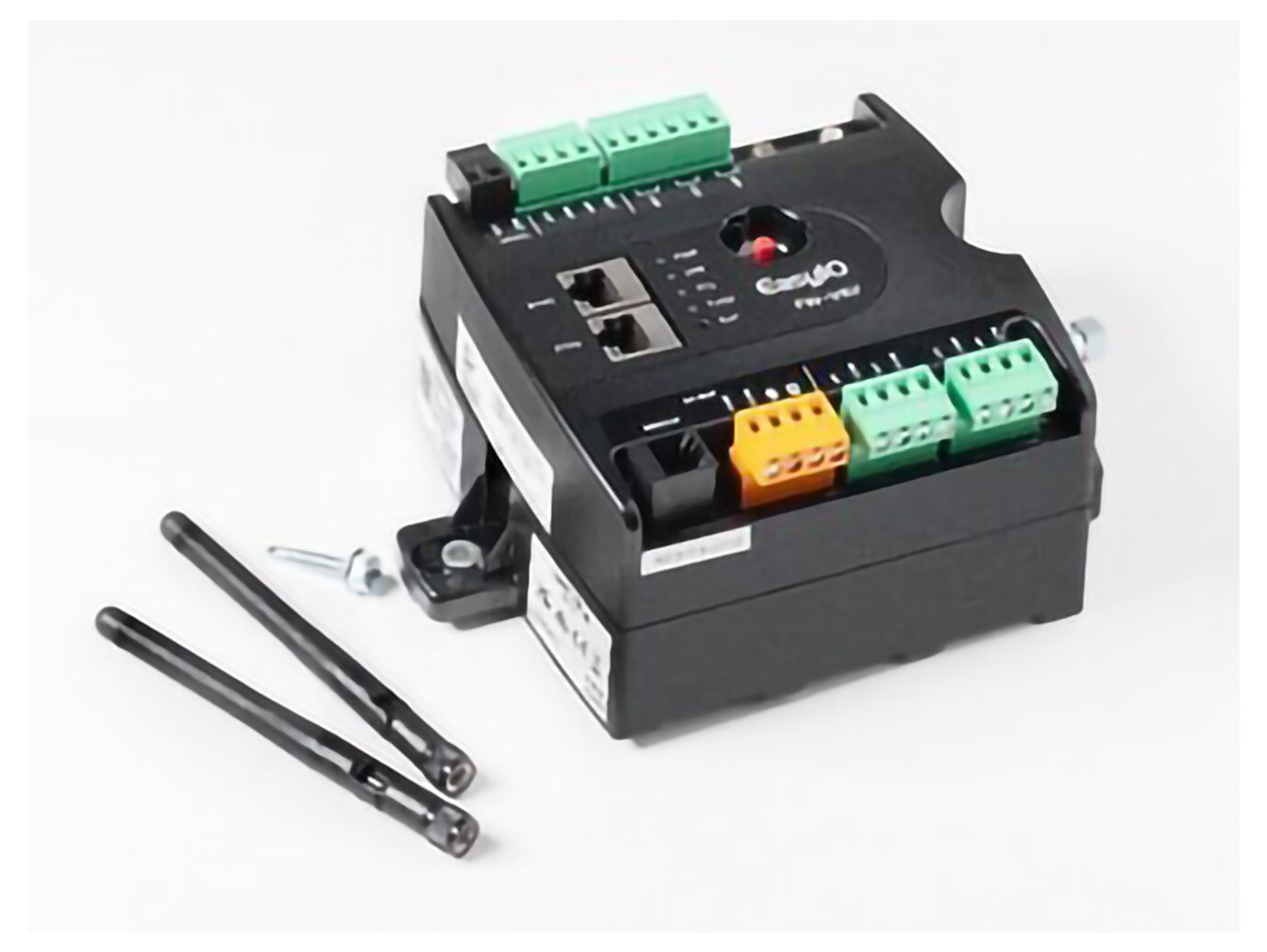

An Industrial electronic EastIO controller with multiple pin connectors and two antennas

Features and Characteristics

Pre-built VAV application with multi operation selection	SQL Lite up to 6,000 records
Pre-built VAV application built with BACnet variables making integration seamless 2	580 MHz MIPS main processor
Air Flow Balancing can be done via any HTML5 compatible web browser without any special tools	48 Mhz ARM Cortex-M0 processor for the I/O
BACnet, Modbus, TCOM and Sox protocol	128MB RAM
BACnet MSTP Client and BACnet IP Client up to 5 devices	32MB Flash Memory
BACnet IP Server over Wi-Fi or Ethernet	2 x 10/100 Ethernet Port
BACNet MS/TP server	1 x RS485
Modbus TCP and RTU Master up to 5 devices	Real Time Clock
EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series	SuperCap Apps Safety Backup
Built in web server, HTML5 compatible and SSL certificate support	24V AC/DC Power
MQTT, RESTful API and other web services	Remote Flash Upgrades
Built in dashboard	Optional Remote Antenna (single or double, with magnetic base)
WiFi Access Point, Repeater or Client Mode	4x UI
2 Ethernet ports act as a normal network switch and support Ethernet daisy chains up to 9 units or up to 30 units when using Spanning Tree Protocol and connected in a ring	4x AO
Network Time Protocol (NTPv4) Client	Differential Pressure Sensor
SMTP protocol (outgoing email) with SSL authentication
